Frame GF-N W
Frame GF-N W is an anodized aluminum structural profile with Ø 28 mm diameter and a linear weight of 0.79 kg/m, designed for modular assembly within the Green Frame system. Available in twelve standard lengths — from 500 mm up to 4000 mm — it enables the construction of workstations, racks, and ergonomic supports adaptable to various production floor layouts. Compared to the standard GF-N Frame, the 'W' version features a higher linear weight, indicating a reinforced cross-section suited for heavier load requirements.
Dati tecnici
| Momento di inerzia : |
| lx=11,66x10^4 mm^4 |
| ly=2,31x10^4 mm^4 |
| Momento di resistenza: |
| Zx=3,59x10^3 mm^3 |
| Zy=1,65x10^3 mm^3 |

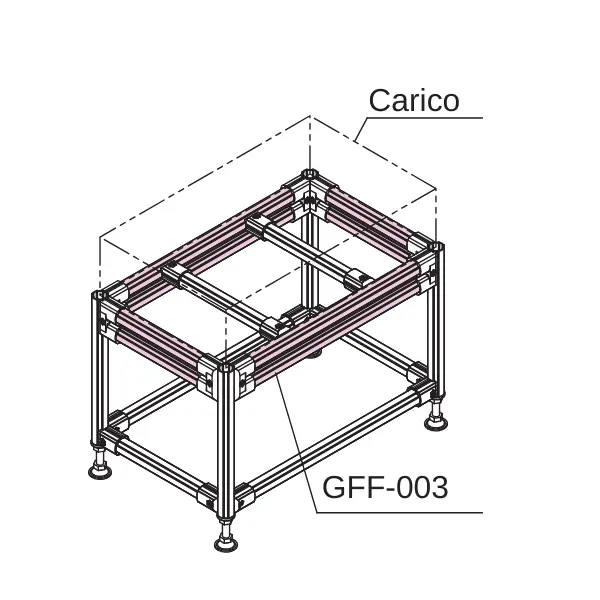

Applicazioni
