Panel Locking Magnet Kit N

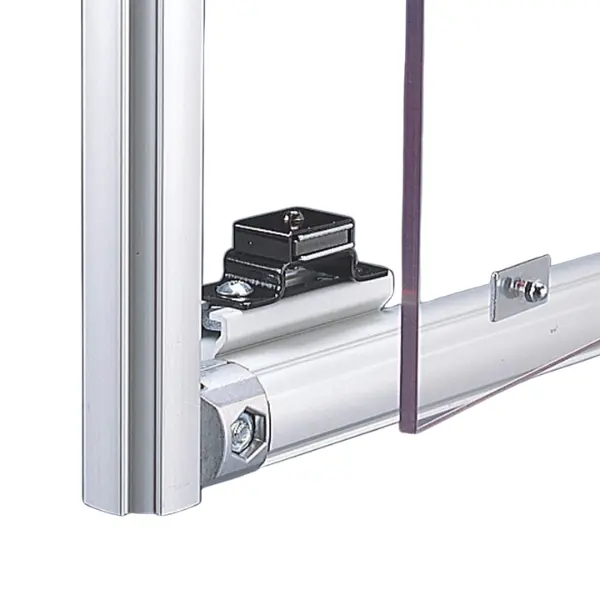

The Panel Locking Magnet Kit N (GFQ-003) is a magnetic catch kit designed for panel door locking on Green Frame GF-N systems with Ø 28 mm tubes. The mounting part is made from extruded aluminium, the housing from stainless steel, and the magnet from ferrite, with a total weight of 130 g. The kit includes the hardware required for direct installation on the GF-N profile. Suitable for lean workstations and visual management systems requiring panel openings with magnetic snap closure.
Dati tecnici
- Connettore L x 1
- Supporto per componenti L66 x 1,
- Fermo magnetico J x 1,
- Dado a T S (M6) x 1,
- Dado a T S (M4) x 2
- Vite a testa svasata Phillips M3 x 10 (cromata trivalente) x 1
- Dado a cappello M3 (cromato trivalente) x 1
- Vite a testa bombata M4 x 10 (cromata trivalente) x 2
- Bullone a basso profilo con esagono incassato M6 x 12 (cromato trivalente) x 1
Applicazioni
