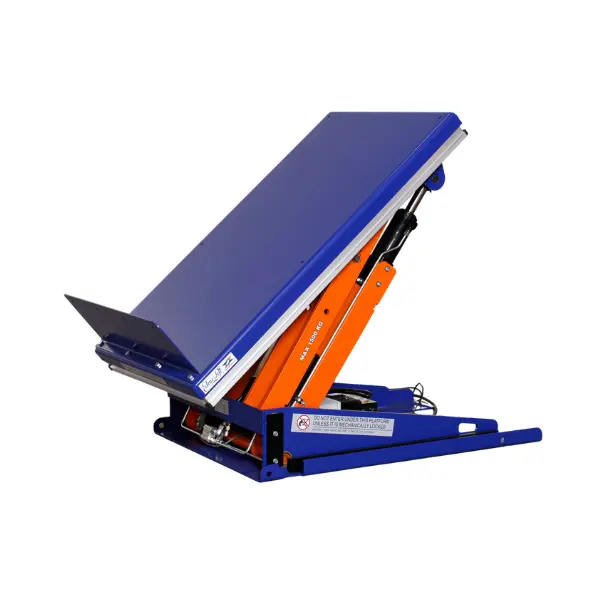

ALT 1500 ArmLift

https://odoo.leanproducts.eu/web/image/product.template/1663/image_1920?unique=1739d13

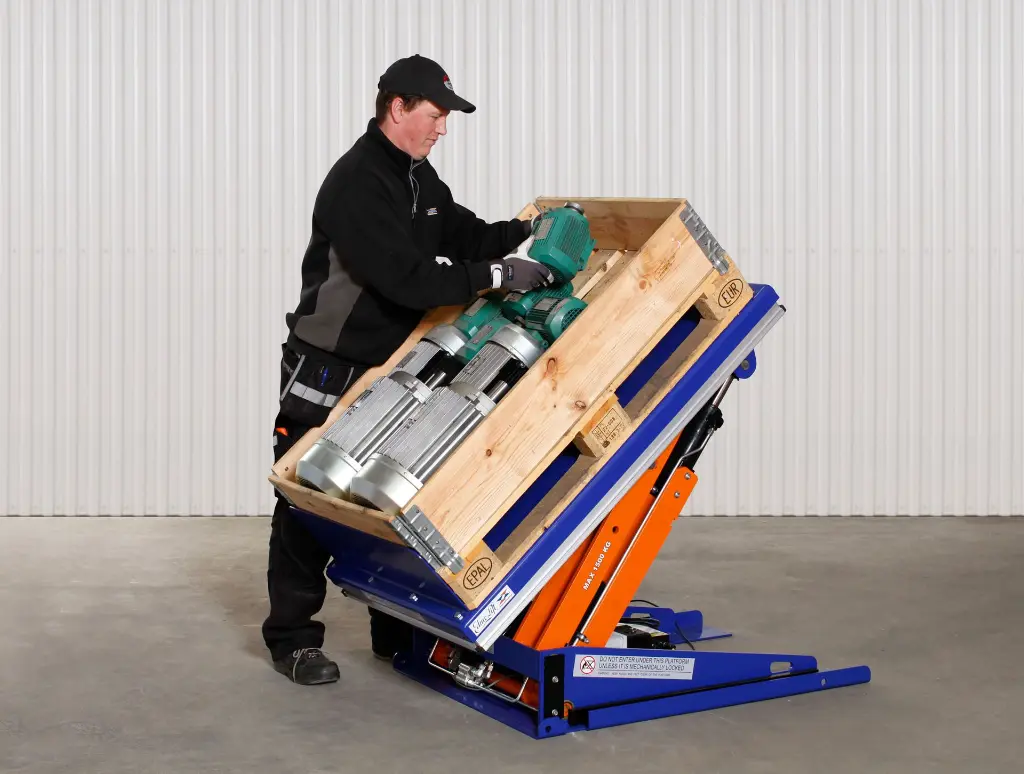

ALT 1500 ArmLift is a lift-and-tilt table designed for industrial applications with a load capacity of up to 1,500 kg. The 820 mm lift stroke, 235 mm minimum height, and 1,300 × 800 mm work surface make it suitable for ergonomic feeding of assembly lines and workstations. Tilt operates on the short side with a range of +5° to -40°, controlled via a 4-button external control unit powered by three-phase 400V supply at 0.95 kW (S3). CE certified to EN 1570-1.

Cod.: 34031
  • Lowest Height mm
  • Tilt Side
  • Tilt
  • Load Restraint
  • Lift Time sec.
  • Peso Kg
  • Control Unit
  • Power Pack
  • Power kW (S3)
  • Power Supply
  • Certificate

This combination does not exist.

You have already submitted a query for this product today.
Contact Us
Scarica scheda PDF

Specifications

Capacity Kg 1500
Lift Stroke mm 820
Lowest Height mm 235
Lift Table Lenght mm 1300
Lift Table Width mm 800
Tilt Side Short Side
Tilt +5° -40°
Load Restraint Load Restraint H=230
Lift Time sec. 16
Peso Kg 180
Control Unit Standard Control Unit 4 Buttons
Power Pack External with Plastic Cover L=3m
Power kW (S3) 0,95
Power Supply Triphase 400V
Certificate CE - EN 1570-1
