ALT 1500UE ArmLift

https://odoo.leanproducts.eu/web/image/product.template/1669/image_1920?unique=1739d13

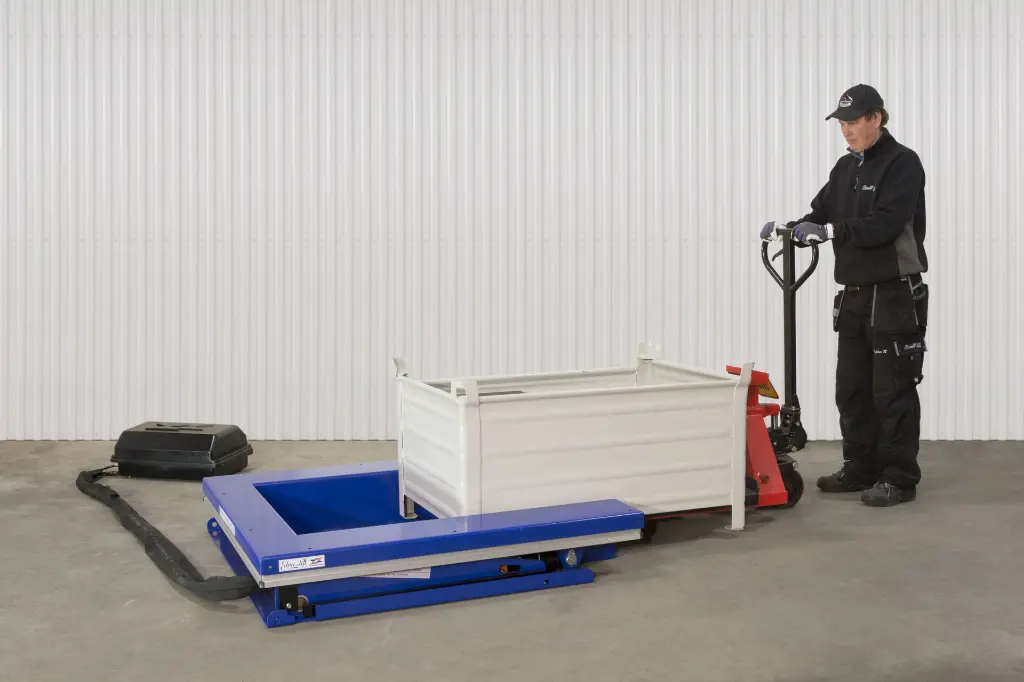

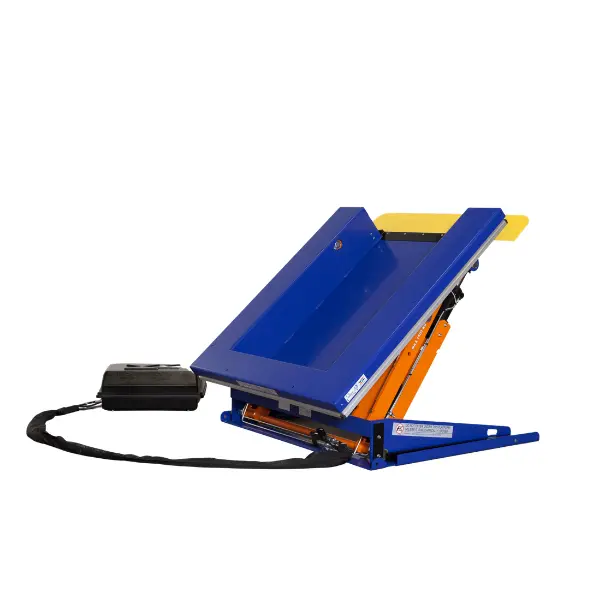

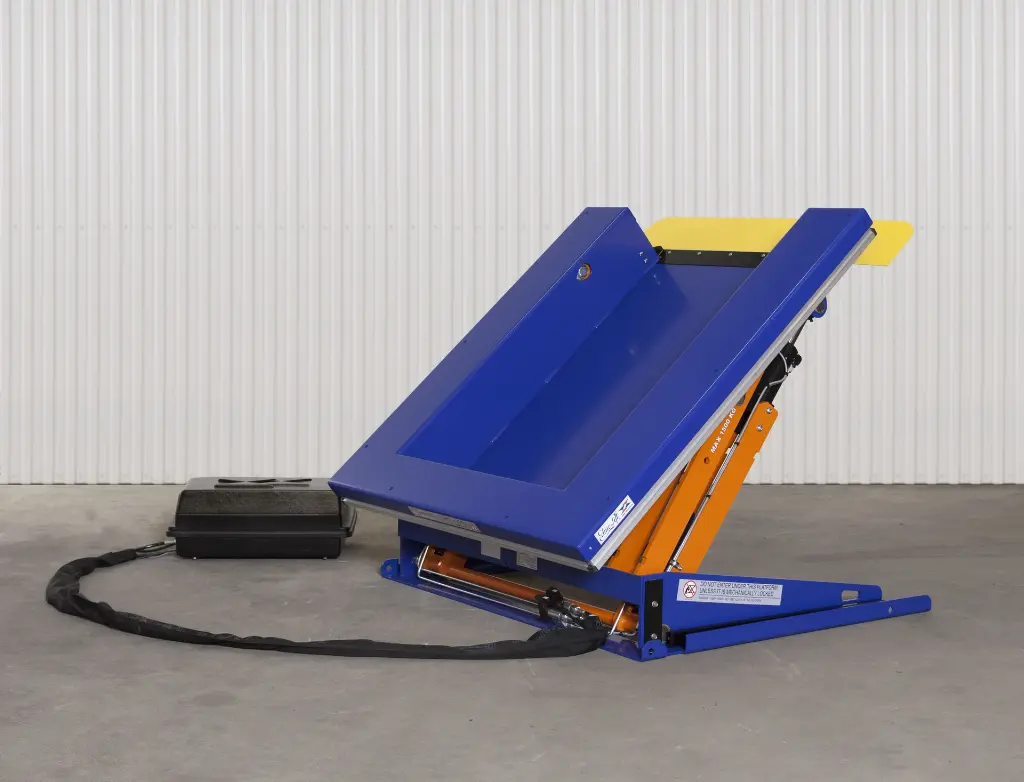

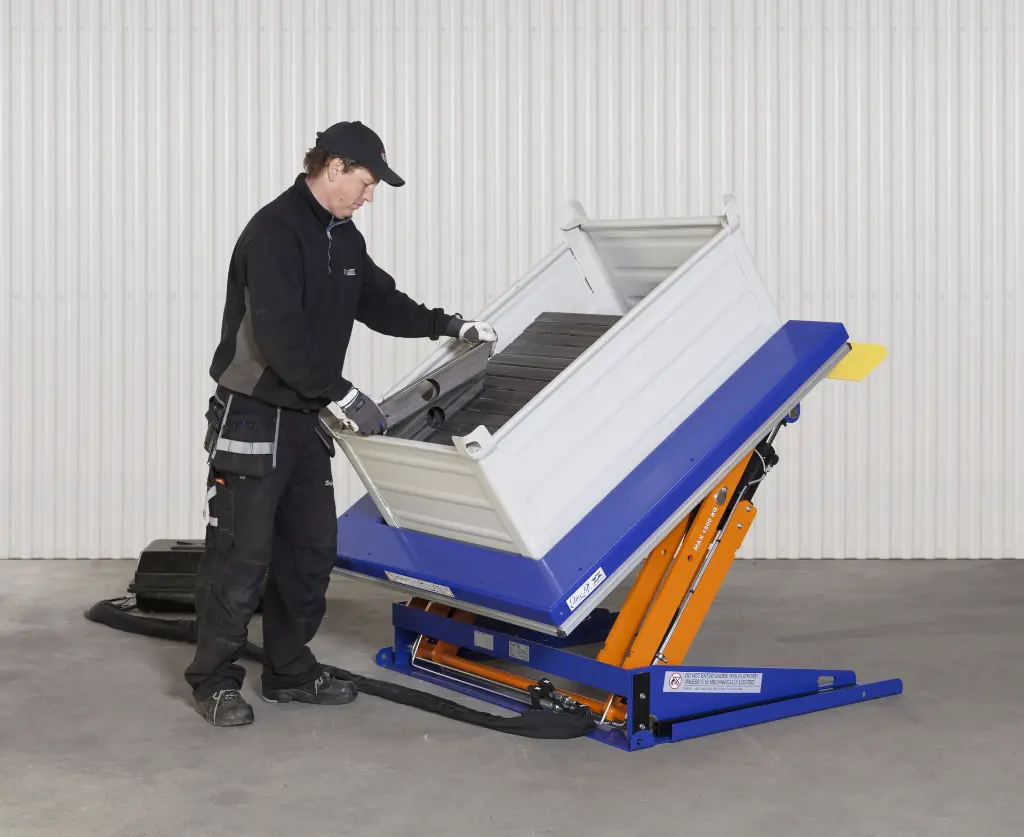

The ALT 1500UE ArmLift is a lift-and-tilt table designed for industrial applications requiring both vertical lifting and load tilting on the short side. It handles up to 1500 kg with an 820 mm lift stroke and a 1380×850 mm work surface, offering a tilt range of +5° to -40° and a minimum floor height of just 6 mm for easy load positioning. Powered by an external three-phase 400V power pack (0.95 kW S3), it features a 4-button control unit, a load restraint (H=230 mm), and is CE certified to EN 1570-1.

Cod.: 34085
  • Lowest Height mm
  • Tilt Side
  • Tilt
  • Load Restraint
  • Lift Time sec.
  • Peso Kg
  • Control Unit
  • Power Pack
  • Power kW (S3)
  • Power Supply
  • Certificate

This combination does not exist.

You have already submitted a query for this product today.
Contact Us
Scarica scheda PDF

Specifications

Capacity Kg 1500
Lift Stroke mm 820
Lowest Height mm 6
Lift Table Lenght mm 1380
Lift Table Width mm 850
Tilt Side Short Side
Tilt +5° -40°
Load Restraint Load Restraint H=230
Lift Time sec. 16
Peso Kg 180
Control Unit Standard Control Unit 4 Buttons
Power Pack External with Plastic Cover L=3m
Power kW (S3) 0,95
Power Supply Triphase 400V
Certificate CE - EN 1570-1
