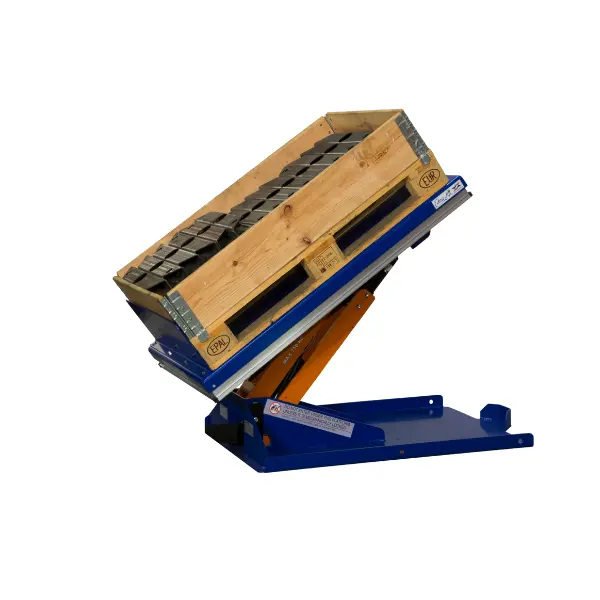

ALT 750 ArmLift

https://odoo.leanproducts.eu/web/image/product.template/1662/image_1920?unique=1739d13

ALT 750 ArmLift is a lift-and-tilt table with a 750 kg load capacity, 820 mm lift stroke, and 1300×800 mm work surface, designed for assembly and industrial logistics workstations requiring ergonomic height and angle adjustment of the load. Tilting on the short side reaches -40°/+5°, with an integrated load restraint H=230 mm ensuring load stability throughout the cycle. The internal 0.95 kW (S3) motor unit, powered by three-phase 400V supply, completes a full lift cycle in 18 seconds via a standard 4-button control unit. The product is CE certified in accordance with EN 1570-1.

Cod.: 22035
  • Lowest Height mm
  • Tilt Side
  • Tilt
  • Load Restraint
  • Lift Time sec.
  • Peso Kg
  • Control Unit
  • Power Pack
  • Power kW (S3)
  • Power Supply
  • Certificate

This combination does not exist.

You have already submitted a query for this product today.
Contact Us
Scarica scheda PDF

Specifications

Capacity Kg 750
Lift Stroke mm 820
Lowest Height mm 235
Lift Table Lenght mm 1300
Lift Table Width mm 800
Tilt Side Short Side
Tilt +5° -40°
Load Restraint Load Restraint H=230
Lift Time sec. 18
Peso Kg 180
Control Unit Standard Control Unit 4 Buttons
Power Pack Internal
Power kW (S3) 0,95
Power Supply Triphase 400V
Certificate CE - EN 1570-1
