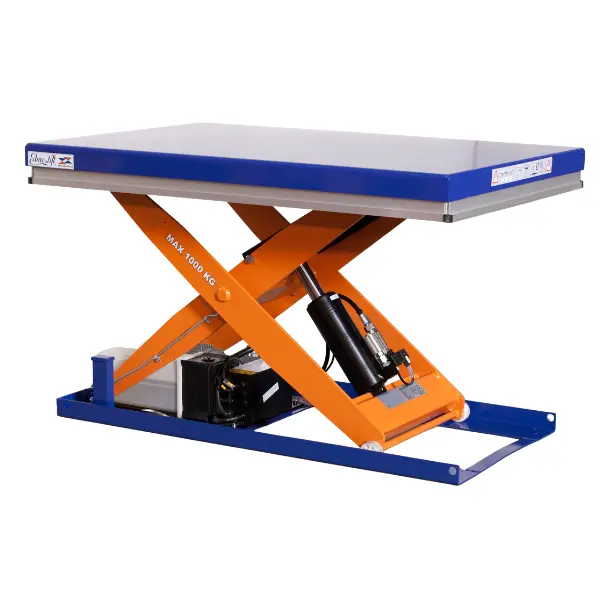

CL 1001 Single Scissor Lift Table

https://odoo.leanproducts.eu/web/image/product.template/11/image_1920?unique=1739d13

The CL 1001 is a single scissor lift table with a 1,000 kg load capacity, 820 mm lift stroke, and a minimum platform height of 200 mm, designed for industrial workstations requiring ergonomic height adjustment or load transfer between different levels. The 1,200 × 800 mm platform surface, internal power pack, and 15-second lift cycle ensure efficient integration into production lines. Powered by a 400V three-phase supply with a 0.95 kW (S3) motor, it features a standard 2-button control unit and is CE certified in accordance with EN 1570-1.

2,416.80 € 2416.8 EUR 2,544.00 € 5.00 % OFF

Cod.: 36045
  • Lowest Height mm
  • Scissor lift
  • Lift Time sec.
  • Peso Kg
  • Control Unit
  • Power Pack
  • Power kW (S3)
  • Power Supply
  • Certificate

This combination does not exist.

You have already submitted a query for this product today.
Prezzi Pubblici
Contact Us
Scarica scheda PDF

Specifications

Capacity Kg 1000
Lift Stroke mm 820
Lowest Height mm 200
Lift Table Lenght mm 1200
Lift Table Width mm 800
Scissor lift Single Scissor
Lift Time sec. 15
Peso Kg 180
Control Unit Standard Control Unit 2 Buttons
Power Pack Internal
Power kW (S3) 0,95
Power Supply Triphase 400V
Certificate CE - EN 1570-1
