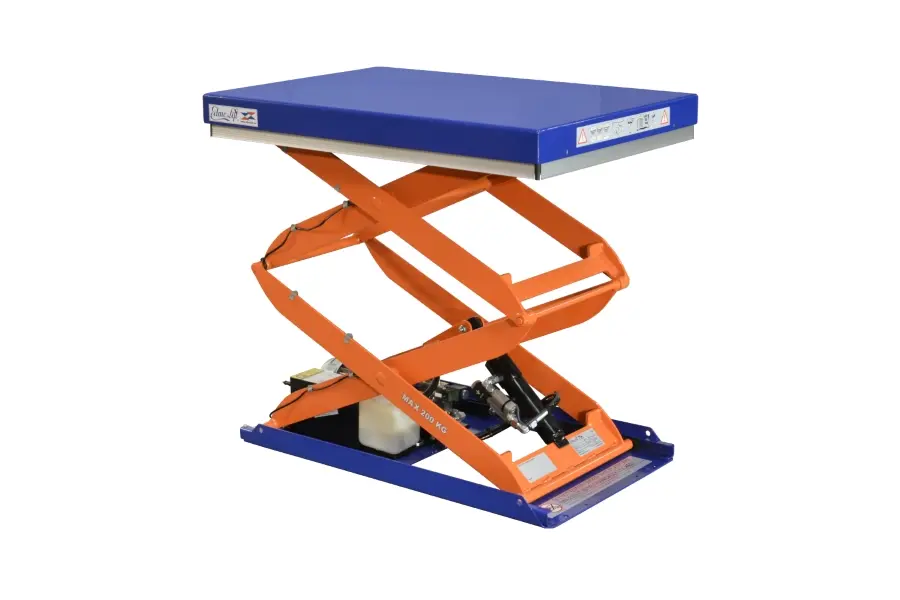

CRD 200 Vertical Lift Table

https://odoo.leanproducts.eu/web/image/product.template/1626/image_1920?unique=1739d13

The CRD 200 is a vertical double-scissor lift table with a 200 kg load capacity and a 1,170 mm lift stroke, designed for industrial material handling applications requiring ergonomic load positioning at height. The 280 mm minimum height and 900×600 mm platform make it suitable for integration into assembly lines and workstations with limited floor space. The internal power pack, 0.55 kW (S3) motor running on 400V three-phase supply, and 12-second lift cycle ensure efficient and repeatable operation. CE certified to EN 1570-1, it features a standard 2-button control unit for straightforward operation.

Cod.: 36472
  • Lowest Height mm
  • Scissor lift
  • Lift Time sec.
  • Peso Kg
  • Control Unit
  • Power Pack
  • Power kW (S3)
  • Power Supply
  • Certificate

This combination does not exist.

You have already submitted a query for this product today.
Contact Us
Scarica scheda PDF

Specifications

Capacity Kg 200
Lift Stroke mm 1170
Lowest Height mm 280
Lift Table Lenght mm 900
Lift Table Width mm 600
Scissor lift Vertical Double Scissors
Lift Time sec. 12
Peso Kg 180
Control Unit Standard Control Unit 2 Buttons
Power Pack Internal
Power kW (S3) 0,55
Power Supply Triphase 400V
Certificate CE - EN 1570-1
