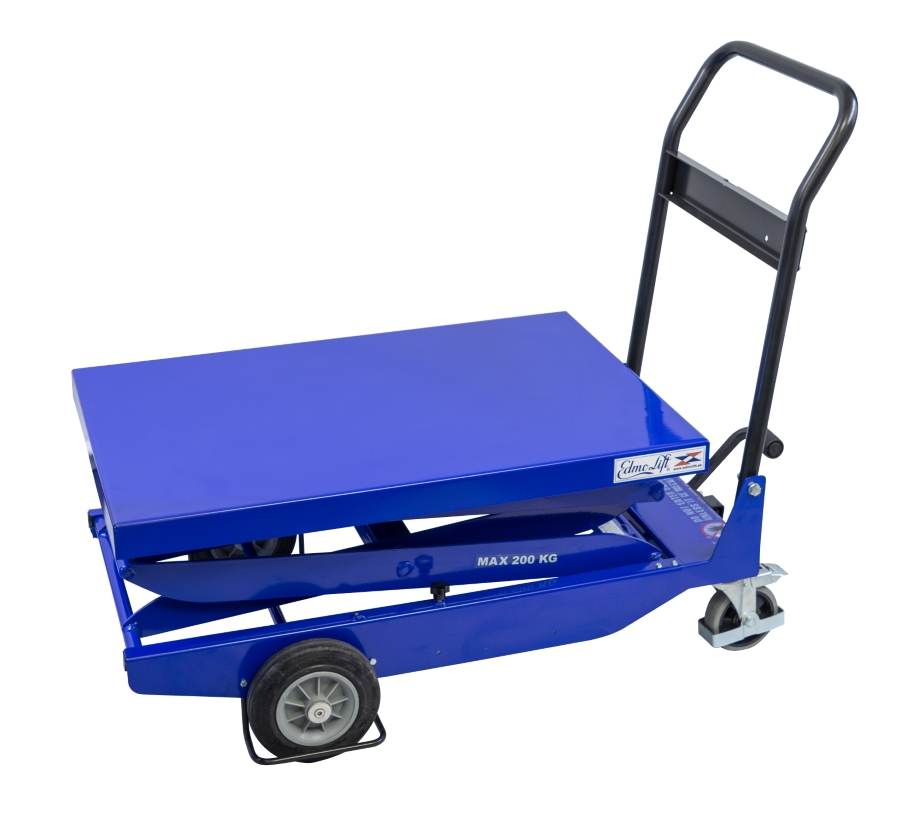

CZD 203 Scissor Lift Trolley

The CZD 203 is a scissor lift trolley with a 200 kg load capacity, 1170 mm lift stroke and 450 mm lowest height, operated via foot pump. The 900 × 600 mm lift table supports ergonomic handling of components and materials in industrial and logistics environments. CE certified to EN 1570-1, it meets European safety standards for lifting equipment.

Cod.: 521449

Lowest Height mm
Lift Drive
- Foot Pump
Peso Kg
- 180
Certificate

This combination does not exist.

Documents

CZD_203_Drawing

Scarica scheda PDF

Scissor Lift Trolley CZD 203

The CZD 203 is a professional scissor lift trolley designed for ergonomic and safe material handling operations. Entry-level solution with excellent value for money, ideal for standard applications.

Technical Specifications

Maximum capacity: 200 kg
Lift stroke: 1170 mm
Minimum height: 450 mm
Maximum height: 1620 mm
Platform size: 1180 x 650 mm

Safety Features

Perimeter anti-crush bar in aluminum
Dual non-return valve (mechanical and electrical)
Mechanical maintenance locks
Safety spacing between moving parts
CE certification according to EN 1570-1

Typical Applications

Ideal for: production lines, assembly, packaging, logistics, loading/unloading, ergonomic workstations, palletizing.

UC-60 Plug & Play System

Equipped with the exclusive UC-60 system with standard M12 connectors for quick accessory addition without electrician intervention.

Specifications

Capacity Kg	200
Lift Stroke mm	1170
Lowest Height mm	450
Lift Table Lenght mm	900
Lift Table Width mm	600
Lift Drive	Foot Pump
Peso Kg	180
Certificate	CE - EN 1570-1
