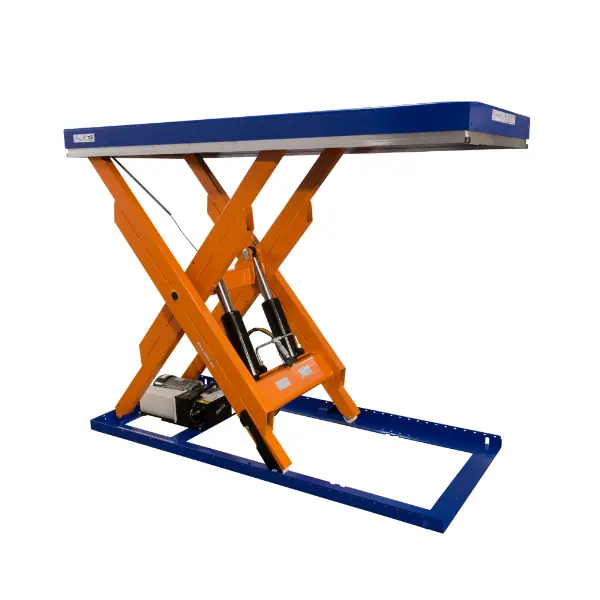

TA 2000 Single Scissor Lift Table

https://odoo.leanproducts.eu/web/image/product.template/1612/image_1920?unique=1739d13

The TA 2000 is a single-scissor lift table rated at 2000 kg with a 1300 mm lift stroke, designed for industrial applications requiring extended vertical travel on a 2000×900 mm platform. The 230 mm lowered height and integrated power pack (1.5 kW, three-phase 400V) make it suitable for assembly lines and production stations with limited pit depth. Lifting cycle completes in 30 seconds via a standard 2-button control unit, ensuring straightforward and repeatable operation. CE certified to EN 1570-1.

Cod.: 34230
  • Lowest Height mm
  • Scissor lift
  • Lift Time sec.
  • Peso Kg
  • Control Unit
  • Power Pack
  • Power kW (S3)
  • Power Supply
  • Certificate

This combination does not exist.

You have already submitted a query for this product today.
Contact Us
Scarica scheda PDF

Specifications

Capacity Kg 2000
Lift Stroke mm 1300
Lowest Height mm 230
Lift Table Lenght mm 2000
Lift Table Width mm 900
Scissor lift Single Scissor
Lift Time sec. 30
Peso Kg 180
Control Unit Standard Control Unit 2 Buttons
Power Pack Internal
Power kW (S3) 1,5
Power Supply Triphase 400V
Certificate CE - EN 1570-1
