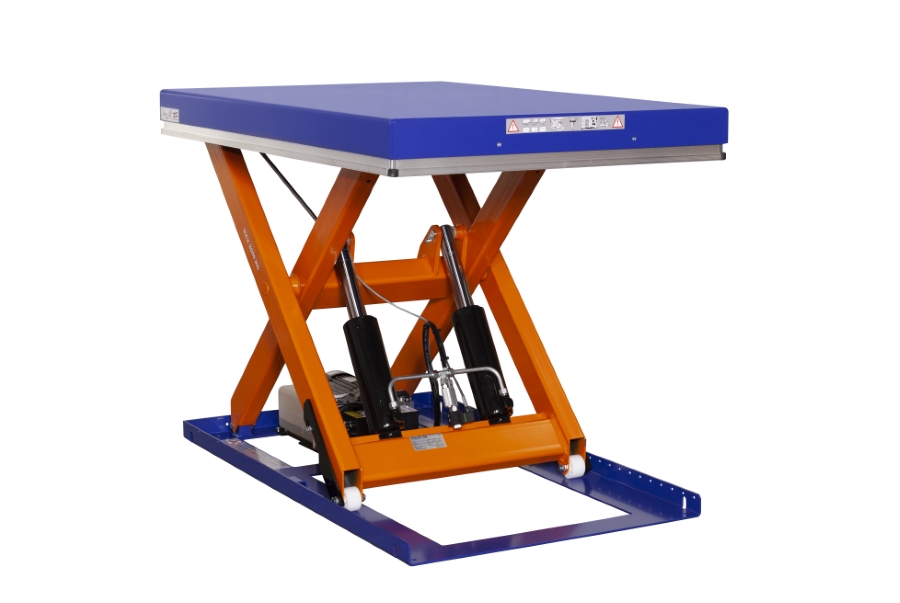

TB 2000 Single Scissor Lift Table

https://odoo.leanproducts.eu/web/image/product.template/1604/image_1920?unique=1739d13

The TB 2000 is a single-scissor lift table with a 2,000 kg load capacity and 1,000 mm lift stroke, designed for industrial material handling applications requiring controlled height adjustment. The 1,500 × 1,000 mm platform reaches a minimum height of 220 mm and completes the lift cycle in 26 seconds, powered by an internal 1.5 kW (S3) unit running on 400V three-phase supply. Operation is managed via a standard 2-button control unit. CE certified to EN 1570-1.

Cod.: 22253
  • Lowest Height mm
  • Scissor lift
  • Lift Time sec.
  • Peso Kg
  • Control Unit
  • Power Pack
  • Power kW (S3)
  • Power Supply
  • Certificate

This combination does not exist.

You have already submitted a query for this product today.
Contact Us
Scarica scheda PDF

Specifications

Capacity Kg 2000
Lift Stroke mm 1000
Lowest Height mm 220
Lift Table Lenght mm 1500
Lift Table Width mm 1000
Scissor lift Single Scissor
Lift Time sec. 26
Peso Kg 180
Control Unit Standard Control Unit 2 Buttons
Power Pack Internal
Power kW (S3) 1,5
Power Supply Triphase 400V
Certificate CE - EN 1570-1
