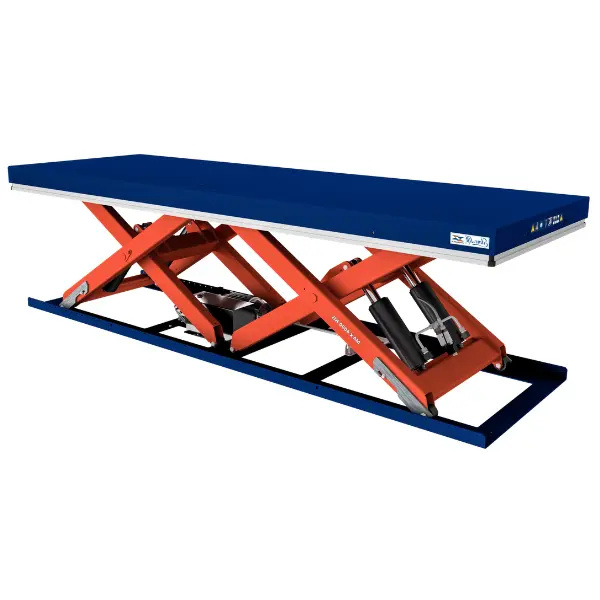

Tandem Scissor Lift Table TBH 4000 - Sweden Quality

The TBH 4000 is a professional tandem scissor lift table designed for ergonomic and safe material handling operations. Manufactured entirely in Sweden with the highest quality standards, fully customizable to your specific requirements.

Technical Specifications

Maximum capacity: 4000 kg
Lift stroke: 1000 mm
Minimum height: 220 mm
Maximum height: 1220 mm
Platform size: 3000 x 1000 mm

Safety Features

Perimeter anti-crush bar in aluminum
Dual non-return valve (mechanical and electrical)
Mechanical maintenance locks
Safety spacing between moving parts
CE certification according to EN 1570-1

Typical Applications

Ideal for: production lines, assembly, packaging, logistics, loading/unloading, ergonomic workstations, palletizing.

UC-60 Plug & Play System

Equipped with the exclusive UC-60 system with standard M12 connectors for quick accessory addition without electrician intervention.

Specifications

Edmolift
Capacity Kg	4000
Lift Stroke mm	1000
Lowest Height mm	220
Lift Table Lenght mm	3000
Lift Table Width mm	1000
Scissor lift	Horizontal Doube Scissors
Lift Time sec.	40
Control Unit	Standard Control Unit 2 Buttons
Power Pack	Internal
Power kW (S3)	1,5
Power Supply	Triphase 400V
Certificate	CE - EN 1570-1

Uncategorized
Peso Kg	180
