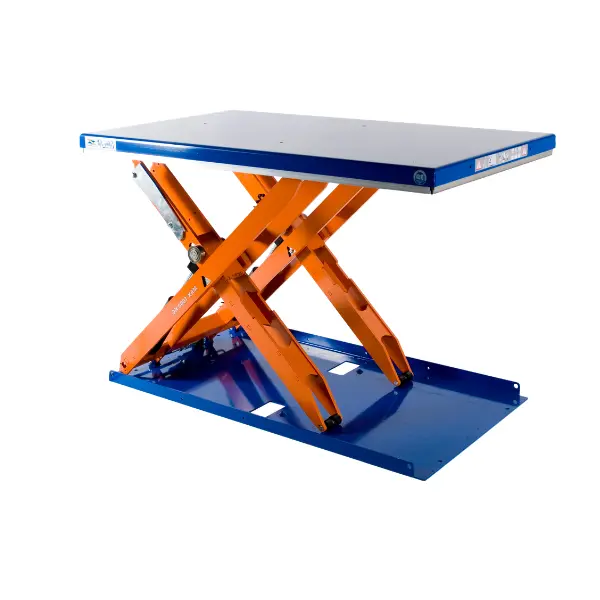

TCL 1000GB Low Profile Lift Table

Cod.: 601224

Lowest Height mm
Scissor lift
Lift Time sec.
Peso Kg
- 180
Control Unit
Power Pack
- External with Plastic Cover L=3m
Power kW (S3)
Power Supply
Certificate

This combination does not exist.

Documents

Low Profile Lift Table TCL 1000GB - Sweden Quality

The TCL 1000GB is a professional low profile lift table designed for ergonomic and safe material handling operations. Manufactured entirely in Sweden with the highest quality standards, fully customizable to your specific requirements.

Technical Specifications

Maximum capacity: 1000 kg
Lift stroke: 820 mm
Minimum height: 80 mm
Maximum height: 900 mm
Platform size: 1350 x 1270 mm

Safety Features

Perimeter anti-crush bar in aluminum
Dual non-return valve (mechanical and electrical)
Mechanical maintenance locks
Safety spacing between moving parts
CE certification according to EN 1570-1

Typical Applications

Ideal for: production lines, assembly, packaging, logistics, loading/unloading, ergonomic workstations, palletizing.

UC-60 Plug & Play System

Equipped with the exclusive UC-60 system with standard M12 connectors for quick accessory addition without electrician intervention.

Specifications

Edmolift
Capacity Kg	1000
Lift Stroke mm	820
Lowest Height mm	80
Lift Table Lenght mm	1350
Lift Table Width mm	1270
Scissor lift	Low Profile
Lift Time sec.	13
Control Unit	Standard Control Unit 2 Buttons
Power Pack	External with Plastic Cover L=3m
Power kW (S3)	0,95
Power Supply	Triphase 400V
Certificate	CE - EN 1570-1

Uncategorized
Peso Kg	180
