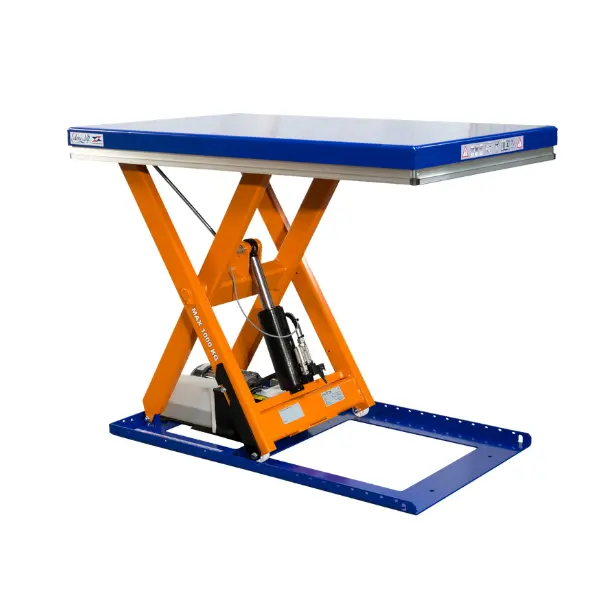

TL 1000 Single Scissor Lift Table

https://odoo.leanproducts.eu/web/image/product.template/1596/image_1920?unique=1739d13

The TL 1000 is a single-scissor lift table rated at 1000 kg capacity with an 820 mm lift stroke, designed for industrial material handling and workstation height adjustment. The 1300×700 mm platform, 180 mm minimum height, and 15-second lift cycle enable straightforward integration into production lines. Powered by a 400V three-phase supply with an internal power pack and a standard 2-button control unit; CE certified to EN 1570-1.

Cod.: 34964
  • Lowest Height mm
  • Scissor lift
  • Lift Time sec.
  • Peso Kg
  • Control Unit
  • Power Pack
  • Power kW (S3)
  • Power Supply
  • Certificate

This combination does not exist.

You have already submitted a query for this product today.
Contact Us
Scarica scheda PDF

Specifications

Capacity Kg 1000
Lift Stroke mm 820
Lowest Height mm 180
Lift Table Lenght mm 1300
Lift Table Width mm 700
Scissor lift Single Scissor
Lift Time sec. 15
Peso Kg 180
Control Unit Standard Control Unit 2 Buttons
Power Pack Internal
Power kW (S3) 0,95
Power Supply Triphase 400V
Certificate CE - EN 1570-1
