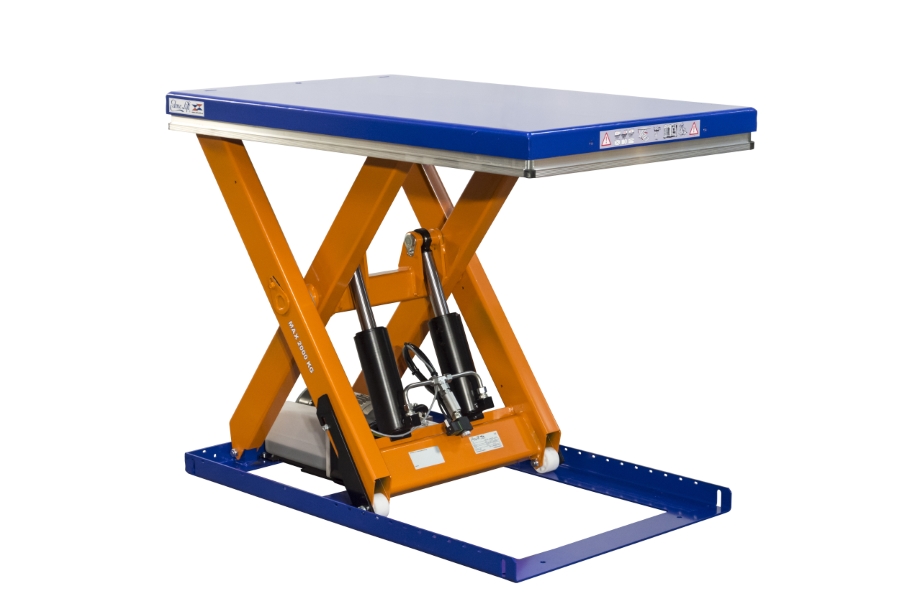

TL 2000 Single Scissor Lift Table

https://odoo.leanproducts.eu/web/image/product.template/1599/image_1920?unique=1739d13

The TL 2000 is a single-scissor lift table rated at 2,000 kg capacity, with an 820 mm lift stroke and a minimum platform height of 200 mm, designed for integration into production lines and ergonomic workstations. The 1,300 × 800 mm platform accommodates bulky loads, while the internal power pack and three-phase 400 V supply deliver a 17-second lift cycle via a 1.5 kW (S3) motor. Operation is managed through a standard 2-button control unit; the unit is CE certified to EN 1570-1.

Cod.: 22010
  • Lowest Height mm
  • Scissor lift
  • Lift Time sec.
  • Peso Kg
  • Control Unit
  • Power Pack
  • Power kW (S3)
  • Power Supply
  • Certificate

This combination does not exist.

You have already submitted a query for this product today.
Contact Us
Scarica scheda PDF

Specifications

Capacity Kg 2000
Lift Stroke mm 820
Lowest Height mm 200
Lift Table Lenght mm 1300
Lift Table Width mm 800
Scissor lift Single Scissor
Lift Time sec. 17
Peso Kg 180
Control Unit Standard Control Unit 2 Buttons
Power Pack Internal
Power kW (S3) 1,5
Power Supply Triphase 400V
Certificate CE - EN 1570-1
