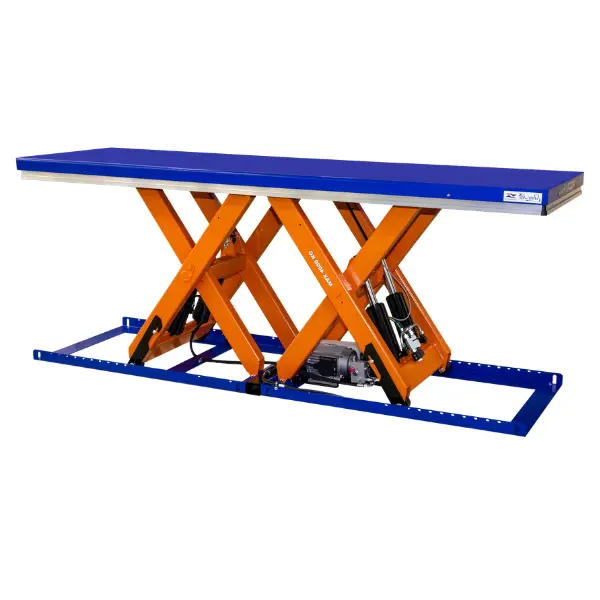

TLH 4000 Tandem Scissor Lift Table
The TLH 4000 is a horizontal double-scissors lift table rated at 4,000 kg capacity, featuring a 2,600 × 800 mm platform and an 820 mm lift stroke with a minimum height of 200 mm, designed for heavy-load handling in industrial environments. The internal 1.5 kW (S3) power pack, supplied at 400V three-phase, delivers a full lift cycle in 35 seconds via a standard 2-button control unit. CE certified to EN 1570-1, it is suitable for integration into assembly lines, ergonomic workstations, and lean manufacturing processes.
