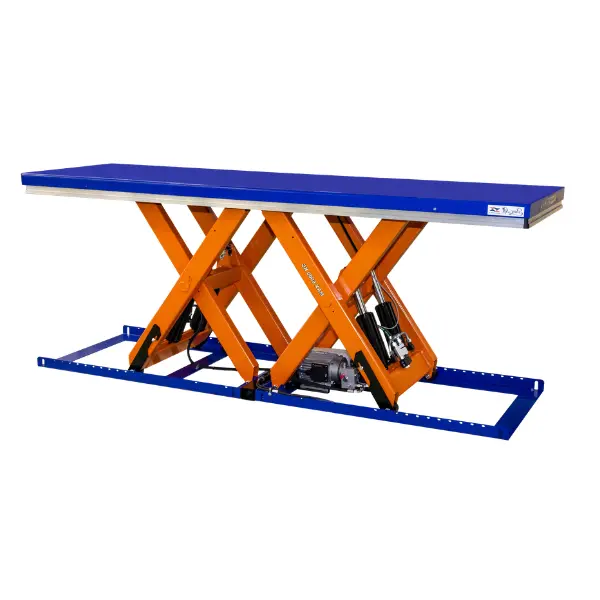

TLH 6000 Tandem Scissor Lift Table

Cod.: 614401

Lowest Height mm
Scissor lift
Lift Time sec.
Peso Kg
- 180
Control Unit
Power Pack
- Internal
Power kW (S3)
Power Supply
Certificate

This combination does not exist.

Documents

Tandem Scissor Lift Table TLH 6000 - Sweden Quality

The TLH 6000 is a professional tandem scissor lift table designed for ergonomic and safe material handling operations. Manufactured entirely in Sweden with the highest quality standards, fully customizable to your specific requirements.

Technical Specifications

Maximum capacity: 6000 kg
Lift stroke: 820 mm
Minimum height: 250 mm
Maximum height: 1070 mm
Platform size: 2600 x 800 mm

Safety Features

Perimeter anti-crush bar in aluminum
Dual non-return valve (mechanical and electrical)
Mechanical maintenance locks
Safety spacing between moving parts
CE certification according to EN 1570-1

Typical Applications

Ideal for: production lines, assembly, packaging, logistics, loading/unloading, ergonomic workstations, palletizing.

UC-60 Plug & Play System

Equipped with the exclusive UC-60 system with standard M12 connectors for quick accessory addition without electrician intervention.

Specifications

Edmolift
Capacity Kg	6000
Lift Stroke mm	820
Lowest Height mm	250
Lift Table Lenght mm	2600
Lift Table Width mm	800
Scissor lift	Horizontal Doube Scissors
Lift Time sec.	39
Control Unit	Standard Control Unit 2 Buttons
Power Pack	Internal
Power kW (S3)	1,5
Power Supply	Triphase 400V
Certificate	CE - EN 1570-1

Uncategorized
Peso Kg	180
