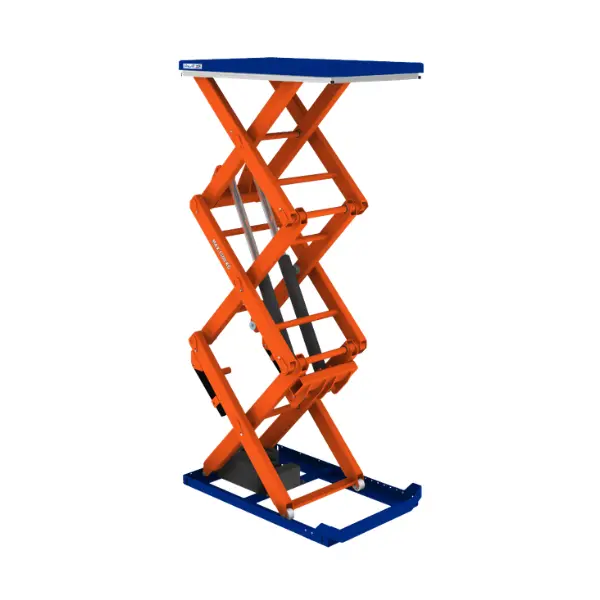

TLT 1500 Vertical Lift Table

Cod.: 600851

Lowest Height mm
Scissor lift
Lift Time sec.
Peso Kg
- 180
Control Unit
Power Pack
- Internal
Power kW (S3)
Power Supply
Certificate

This combination does not exist.

Documents

TLT 1500 Step

TLT_1500_Drawing

Multi-Stage Vertical Lift Table TLT 1500 - Sweden Quality

The TLT 1500 is a professional multi-stage vertical lift table designed for ergonomic and safe material handling operations. Manufactured entirely in Sweden with the highest quality standards, fully customizable to your specific requirements.

Technical Specifications

Maximum capacity: 1500 kg
Lift stroke: 2400 mm
Minimum height: 500 mm
Maximum height: 2900 mm
Platform size: 1300 x 800 mm

Safety Features

Perimeter anti-crush bar in aluminum
Dual non-return valve (mechanical and electrical)
Mechanical maintenance locks
Safety spacing between moving parts
CE certification according to EN 1570-1

Typical Applications

Ideal for: production lines, assembly, packaging, logistics, loading/unloading, ergonomic workstations, palletizing.

UC-60 Plug & Play System

Equipped with the exclusive UC-60 system with standard M12 connectors for quick accessory addition without electrician intervention.

Specifications

Edmolift
Capacity Kg	1500
Lift Stroke mm	2400
Lowest Height mm	500
Lift Table Lenght mm	1300
Lift Table Width mm	800
Scissor lift	Vertical Double Scissors
Lift Time sec.	60
Control Unit	Standard Control Unit 2 Buttons
Power Pack	Internal
Power kW (S3)	1,5
Power Supply	Triphase 400V
Certificate	CE - EN 1570-1

Uncategorized
Peso Kg	180

No frame has been added yet.

No frame has been added yet.

TLT 1500 Vertical Lift Table

Not Available For Sale

Documents

Multi-Stage Vertical Lift Table TLT 1500 - Sweden Quality

Technical Specifications

Safety Features

Typical Applications

UC-60 Plug & Play System

Specifications
