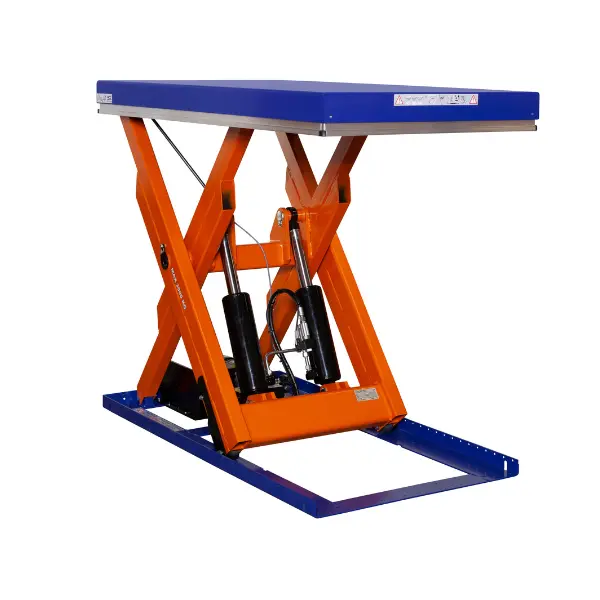

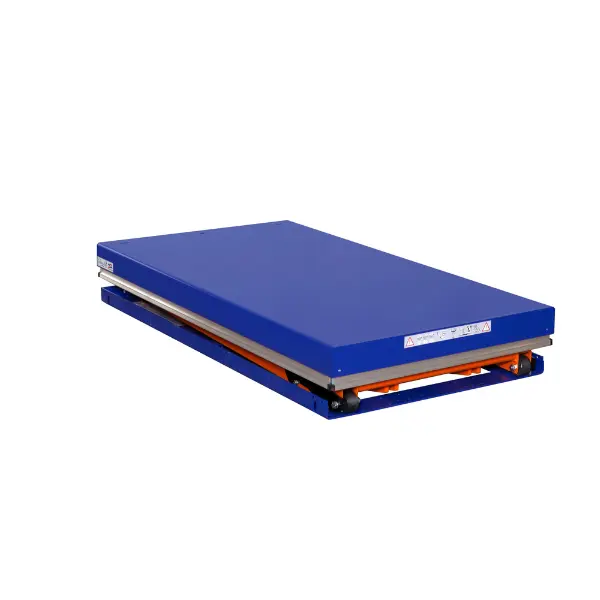

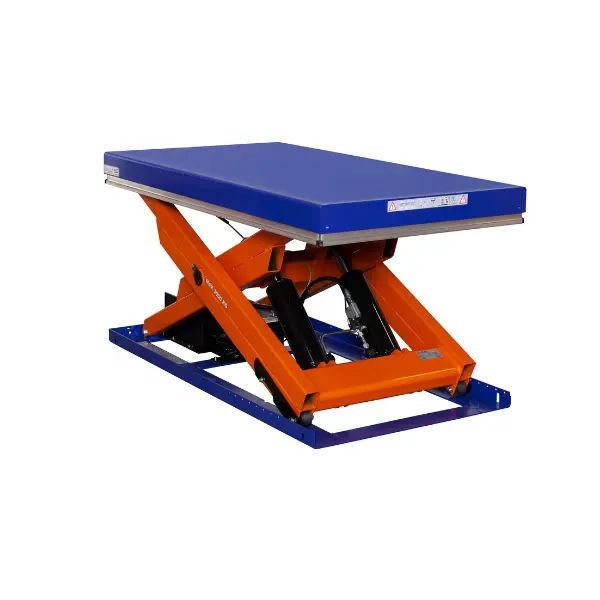

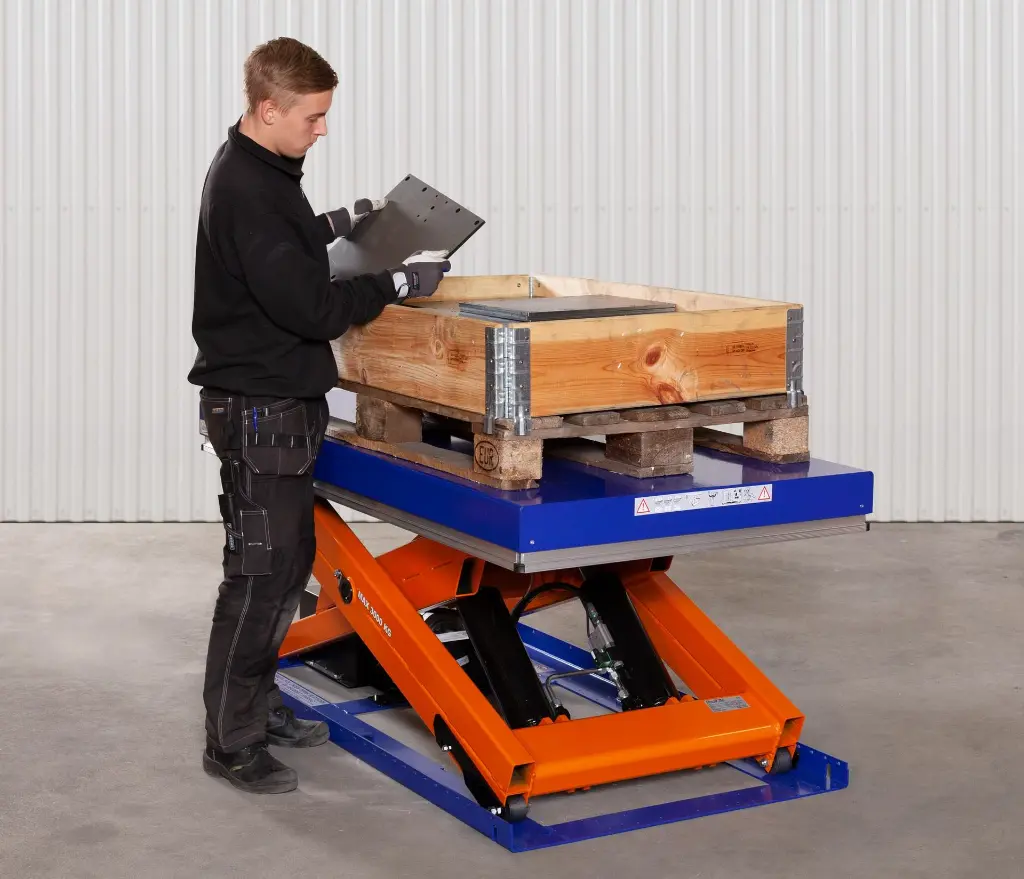

TM 3000 Single Scissor Lift Table

https://odoo.leanproducts.eu/web/image/product.template/1609/image_1920?unique=1739d13

The TM 3000 is a single-scissor lift table with a 3,000 kg load capacity, 1,100 mm lift stroke, and a minimum platform height of 250 mm, designed for ergonomic workstation adjustment and heavy-load industrial handling. The 1,700 × 900 mm platform, internal power pack rated at 1.5 kW (S3) on 400V three-phase supply, and a 27-second lift cycle ensure smooth integration into production workflows. Operation is managed via a standard 2-button control unit. CE certified to EN 1570-1.

Cod.: 33180
  • Lowest Height mm
  • Scissor lift
  • Lift Time sec.
  • Peso Kg
  • Control Unit
  • Power Pack
  • Power kW (S3)
  • Power Supply
  • Certificate

This combination does not exist.

You have already submitted a query for this product today.
Contact Us
Scarica scheda PDF

Specifications

Capacity Kg 3000
Lift Stroke mm 1100
Lowest Height mm 250
Lift Table Lenght mm 1700
Lift Table Width mm 900
Scissor lift Single Scissor
Lift Time sec. 27
Peso Kg 180
Control Unit Standard Control Unit 2 Buttons
Power Pack Internal
Power kW (S3) 1,5
Power Supply Triphase 400V
Certificate CE - EN 1570-1
