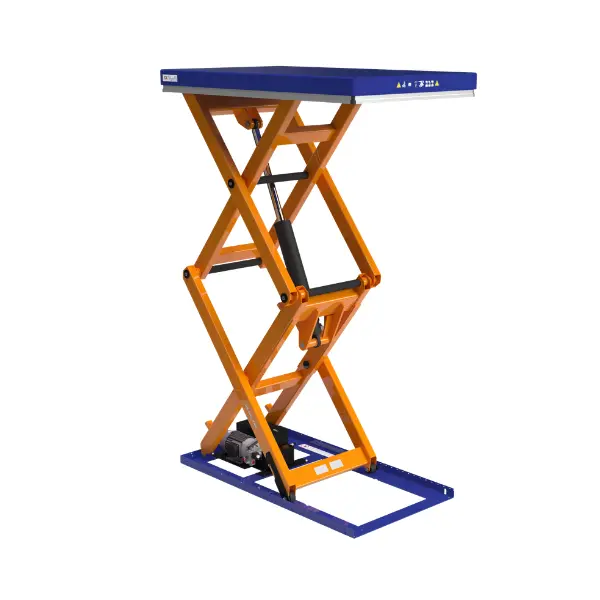

TMD 1500 Vertical Lift Table

Cod.: 22013

Lowest Height mm
Scissor lift
Lift Time sec.
Peso Kg
- 180
Control Unit
Power Pack
- Internal
Power kW (S3)
Power Supply
Certificate

This combination does not exist.

Documents

Multi-Stage Vertical Lift Table TMD 1500 - Sweden Quality

The TMD 1500 is a professional multi-stage vertical lift table designed for ergonomic and safe material handling operations. Manufactured entirely in Sweden with the highest quality standards, fully customizable to your specific requirements.

Technical Specifications

Maximum capacity: 1500 kg
Lift stroke: 2200 mm
Minimum height: 400 mm
Maximum height: 2600 mm
Platform size: 1700 x 1000 mm

Safety Features

Perimeter anti-crush bar in aluminum
Dual non-return valve (mechanical and electrical)
Mechanical maintenance locks
Safety spacing between moving parts
CE certification according to EN 1570-1

Typical Applications

Ideal for: production lines, assembly, packaging, logistics, loading/unloading, ergonomic workstations, palletizing.

UC-60 Plug & Play System

Equipped with the exclusive UC-60 system with standard M12 connectors for quick accessory addition without electrician intervention.

Specifications

Edmolift
Capacity Kg	1500
Lift Stroke mm	2200
Lowest Height mm	400
Lift Table Lenght mm	1700
Lift Table Width mm	1000
Scissor lift	Vertical Double Scissors
Lift Time sec.	46
Control Unit	Standard Control Unit 2 Buttons
Power Pack	Internal
Power kW (S3)	1,5
Power Supply	Triphase 400V
Certificate	CE - EN 1570-1

Uncategorized
Peso Kg	180
