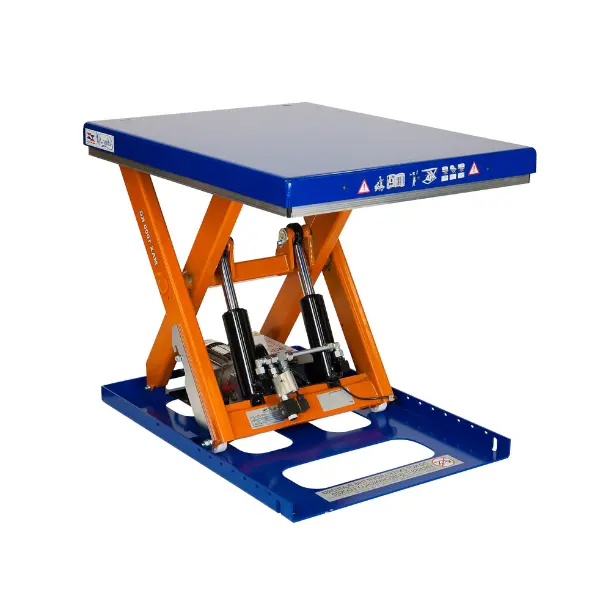

TR 1002 Single Scissor Lift Table

https://odoo.leanproducts.eu/web/image/product.template/1593/image_1920?unique=1739d13

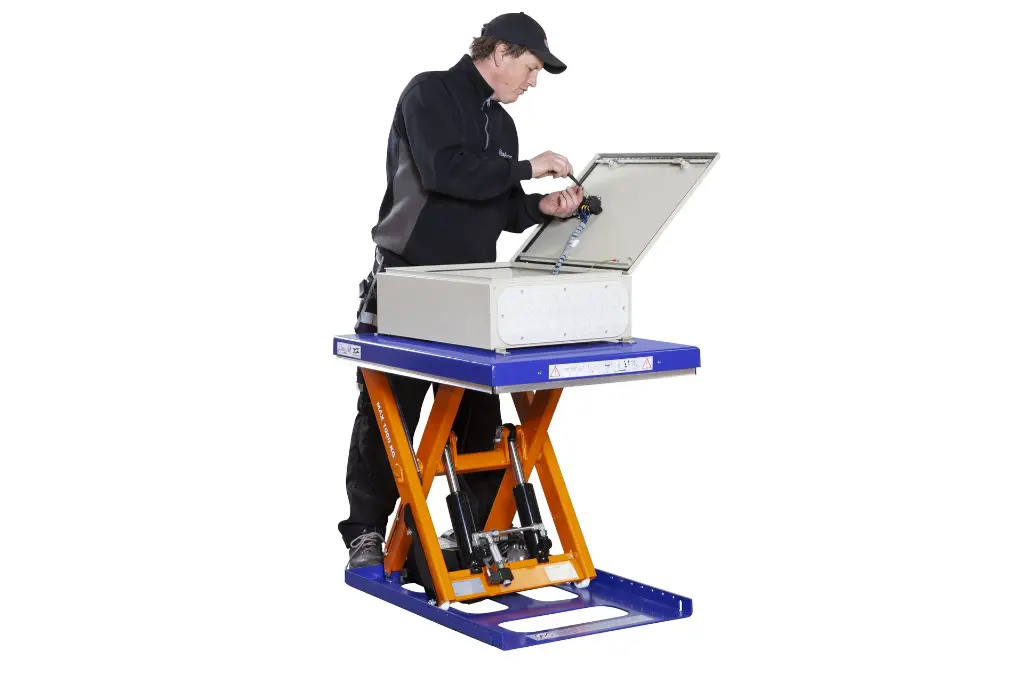

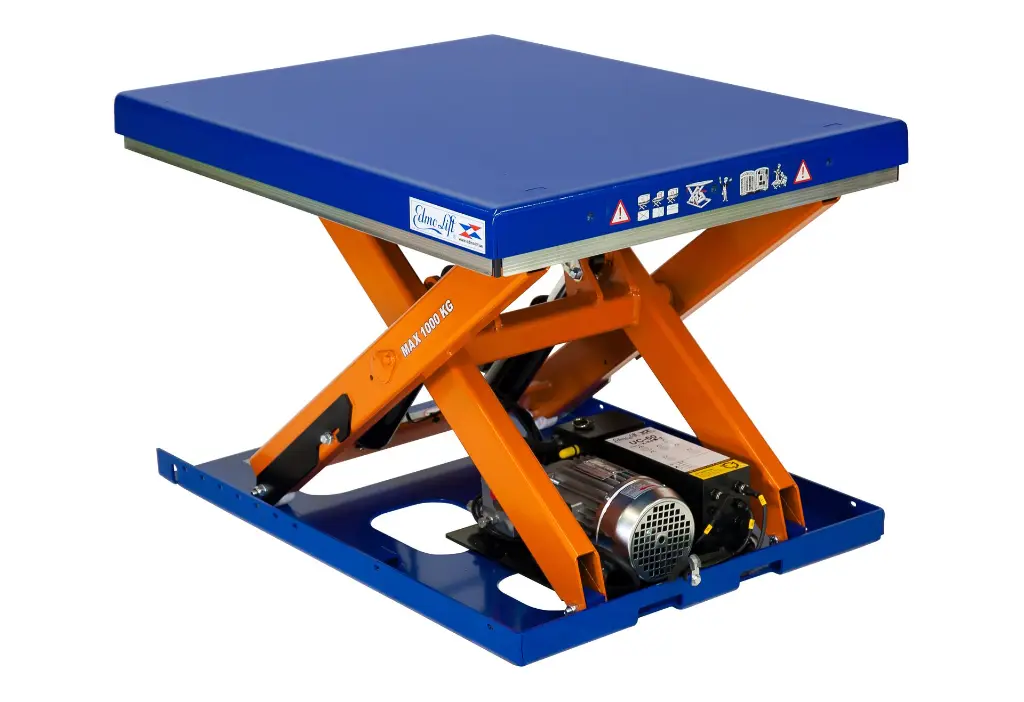

The TR 1002 single scissor lift table is designed for industrial lifting of loads up to 1,000 kg, with a 600 mm lift stroke and a minimum platform height of 160 mm for integration into low-profile production lines. The 900×700 mm work surface, internal power pack (0.55 kW S3, 400V three-phase supply), and 2-button control unit ensure straightforward, self-contained operation with a 22-second lift cycle. CE certified to EN 1570-1, it is suitable for material handling, assembly, and internal logistics applications.

Cod.: 608179
  • Lowest Height mm
  • Scissor lift
  • Lift Time sec.
  • Peso Kg
  • Control Unit
  • Power Pack
  • Power kW (S3)
  • Power Supply
  • Certificate

This combination does not exist.

You have already submitted a query for this product today.
Contact Us
Scarica scheda PDF

Specifications

Capacity Kg 1000
Lift Stroke mm 600

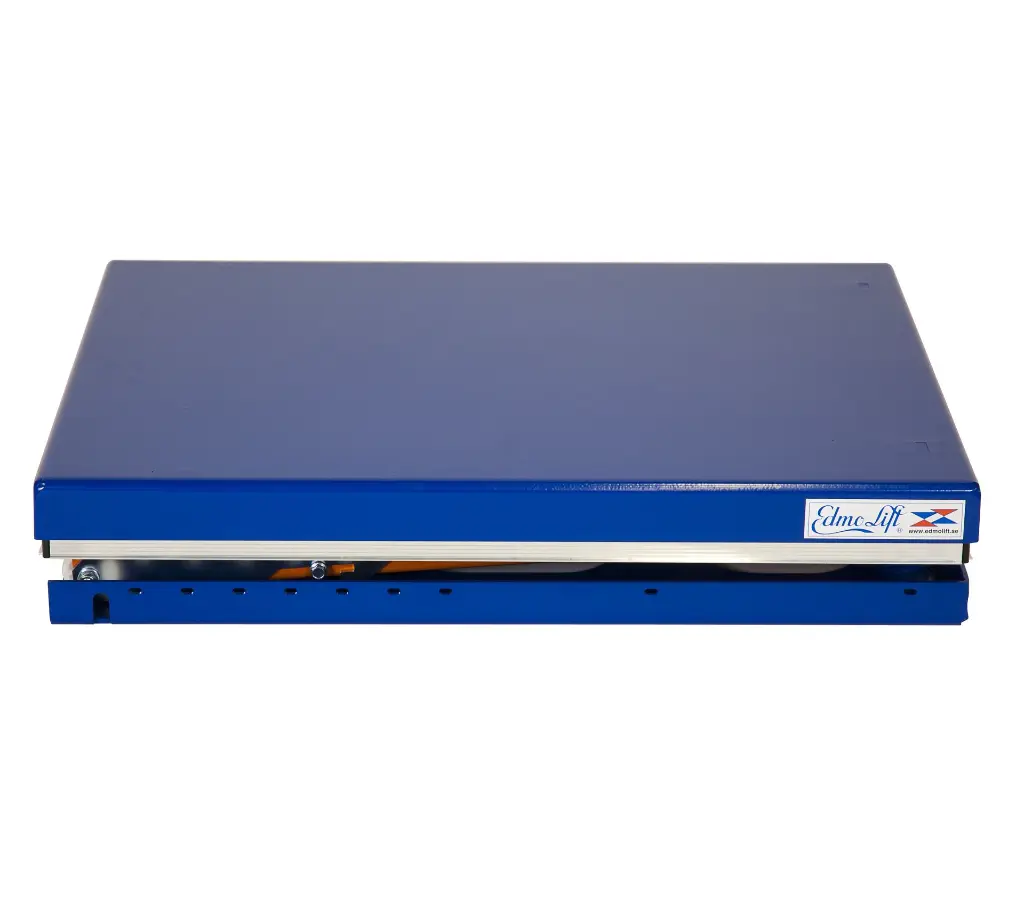

Lowest Height mm 160
Lift Table Lenght mm 900
Lift Table Width mm 700
Scissor lift Single Scissor
Lift Time sec. 22
Peso Kg 180
Control Unit Standard Control Unit 2 Buttons
Power Pack Internal
Power kW (S3) 0,55
Power Supply Triphase 400V
Certificate CE - EN 1570-1
