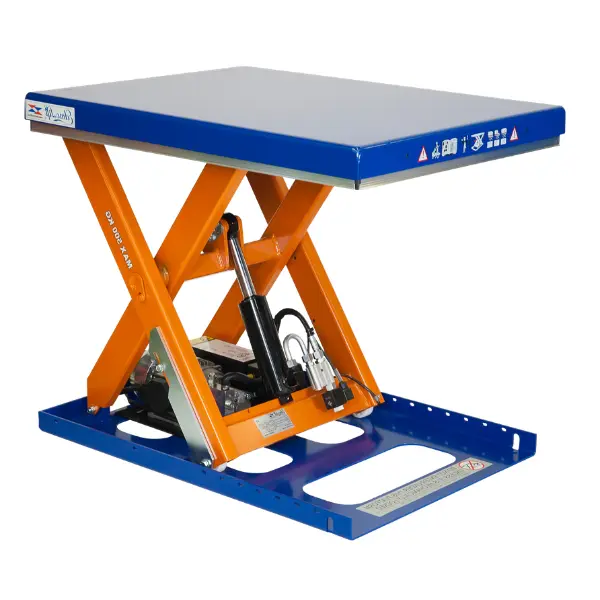

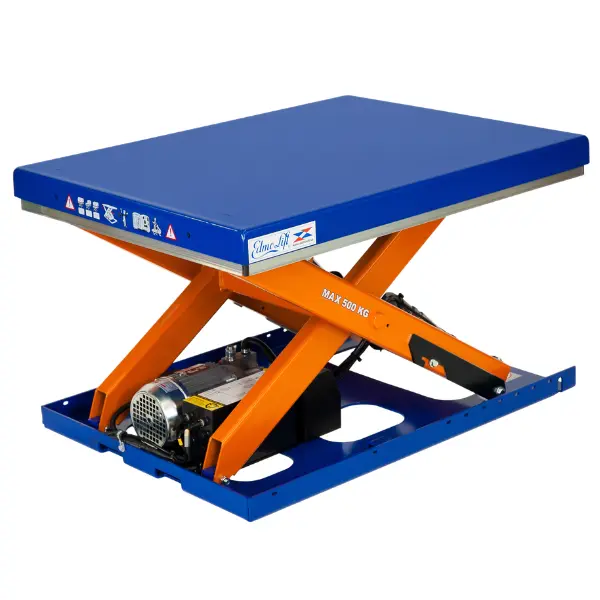

TR 501 Single Scissor Lift Table

https://odoo.leanproducts.eu/web/image/product.template/1592/image_1920?unique=1739d13

The TR 501 is a single scissor lift table with a 500 kg load capacity and 600 mm lift stroke, designed for industrial applications requiring ergonomic handling of loads at variable heights. The 160 mm minimum platform height and 900×700 mm work surface make it suitable for integration into assembly lines and picking stations. The internal 0.55 kW (S3) power pack, supplied at 400V three-phase, delivers a 12-second lift cycle controlled via a standard 2-button control unit. CE certified to EN 1570-1.

Cod.: 609945
  • Lowest Height mm
  • Scissor lift
  • Lift Time sec.
  • Peso Kg
  • Control Unit
  • Power Pack
  • Power kW (S3)
  • Power Supply
  • Certificate

This combination does not exist.

You have already submitted a query for this product today.
Contact Us
Scarica scheda PDF

Specifications

Capacity Kg 500
Lift Stroke mm 600
Lowest Height mm 160
Lift Table Lenght mm 900
Lift Table Width mm 700
Scissor lift Single Scissor
Lift Time sec. 12
Peso Kg 180
Control Unit Standard Control Unit 2 Buttons
Power Pack Internal
Power kW (S3) 0,55
Power Supply Triphase 400V
Certificate CE - EN 1570-1
