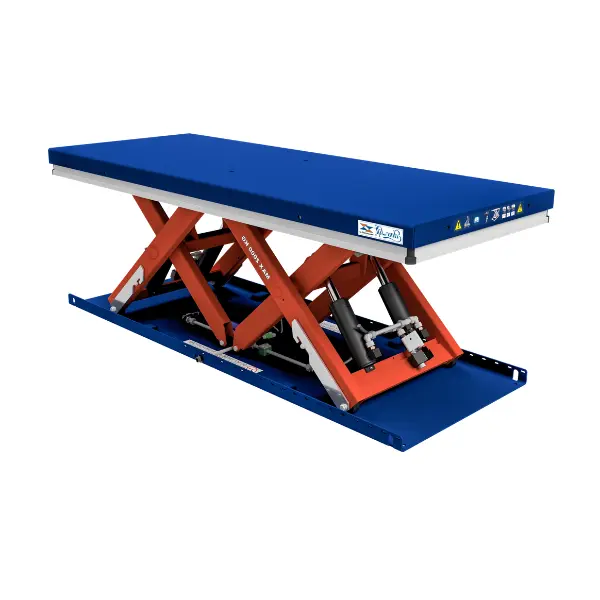

TRH 2000 Tandem Scissor Lift Table

Cod.: 614820

Lowest Height mm
Scissor lift
Lift Time sec.
Peso Kg
- 180
Control Unit
Power Pack
- Internal
Power kW (S3)
Power Supply
Certificate

This combination does not exist.

Documents

TRH_2000_Drawing

Tandem Scissor Lift Table TRH 2000 - Sweden Quality

The TRH 2000 is a professional tandem scissor lift table designed for ergonomic and safe material handling operations. Manufactured entirely in Sweden with the highest quality standards, fully customizable to your specific requirements.

Technical Specifications

Maximum capacity: 2000 kg
Lift stroke: 600 mm
Minimum height: 160 mm
Maximum height: 760 mm
Platform size: 1800 x 700 mm

Safety Features

Perimeter anti-crush bar in aluminum
Dual non-return valve (mechanical and electrical)
Mechanical maintenance locks
Safety spacing between moving parts
CE certification according to EN 1570-1

Typical Applications

Ideal for: production lines, assembly, packaging, logistics, loading/unloading, ergonomic workstations, palletizing.

UC-60 Plug & Play System

Equipped with the exclusive UC-60 system with standard M12 connectors for quick accessory addition without electrician intervention.

Specifications

Edmolift
Capacity Kg	2000
Lift Stroke mm	600
Lowest Height mm	160
Lift Table Lenght mm	1800
Lift Table Width mm	700
Scissor lift	Horizontal Doube Scissors
Lift Time sec.	22
Control Unit	Standard Control Unit 2 Buttons
Power Pack	Internal
Power kW (S3)	0,95
Power Supply	Triphase 400V
Certificate	CE - EN 1570-1

Uncategorized
Peso Kg	180
