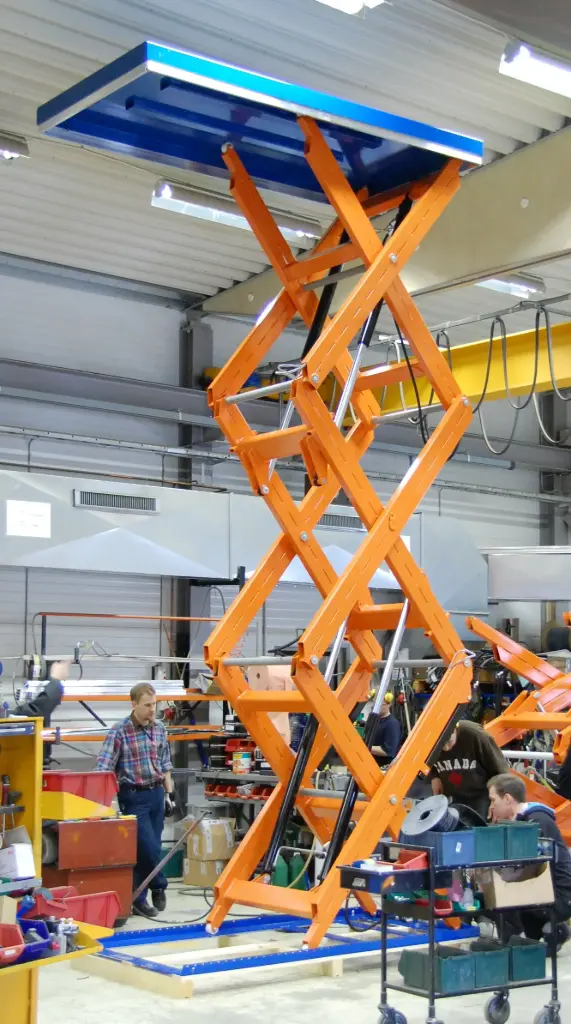

TST 2000 Vertical Lift Table

Cod.: 33780

Lowest Height mm
Scissor lift
Lift Time sec.
Peso Kg
- 180
Control Unit
Power Pack
- Internal
Power kW (S3)
Power Supply
Certificate

This combination does not exist.

Documents

TST 2000 Step

TST_2000_Drawing

Multi-Stage Vertical Lift Table TST 2000 - Sweden Quality

The TST 2000 is a professional multi-stage vertical lift table designed for ergonomic and safe material handling operations. Manufactured entirely in Sweden with the highest quality standards, fully customizable to your specific requirements.

Technical Specifications

Maximum capacity: 2000 kg
Lift stroke: 4500 mm
Minimum height: 700 mm
Maximum height: 5200 mm
Platform size: 2200 x 1200 mm

Safety Features

Perimeter anti-crush bar in aluminum
Dual non-return valve (mechanical and electrical)
Mechanical maintenance locks
Safety spacing between moving parts
CE certification according to EN 1570-1

Typical Applications

Ideal for: production lines, assembly, packaging, logistics, loading/unloading, ergonomic workstations, palletizing.

UC-60 Plug & Play System

Equipped with the exclusive UC-60 system with standard M12 connectors for quick accessory addition without electrician intervention.

Specifications

Edmolift
Capacity Kg	2000
Lift Stroke mm	4500
Lowest Height mm	700
Lift Table Lenght mm	2200
Lift Table Width mm	1200
Scissor lift	Vertical Double Scissors
Lift Time sec.	80
Control Unit	Standard Control Unit 2 Buttons
Power Pack	Internal
Power kW (S3)	3,5
Power Supply	Triphase 400V
Certificate	CE - EN 1570-1

Uncategorized
Peso Kg	180
