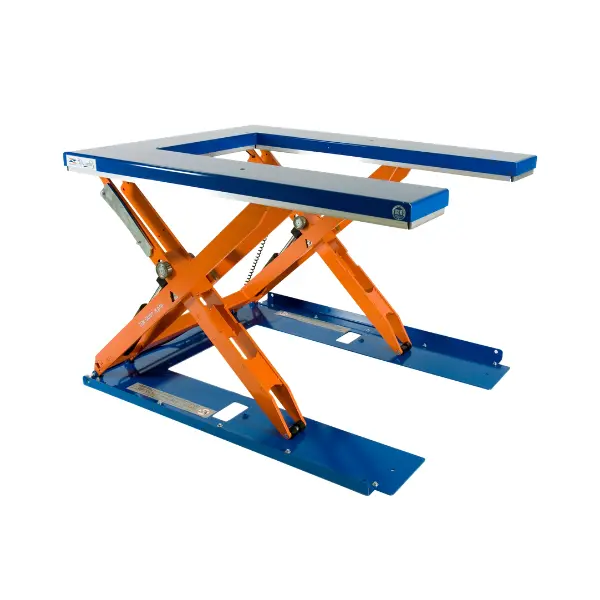

TUL 1000 Low Profile Lift Table

https://odoo.leanproducts.eu/web/image/product.template/1646/image_1920?unique=1739d13

The TUL 1000 is a low-profile scissor lift table with a minimum height of 80 mm, designed for integration in production environments where floor-level vertical clearance is restricted. A 1,000 kg load capacity, 820 mm lift stroke, and 13-second lift time ensure an efficient operating cycle for industrial material handling applications. The 1,350 × 1,080 mm platform is driven by an external power pack rated at 0.95 kW (S3) on 400V three-phase supply, with a standard 2-button control unit included. CE certified to EN 1570-1.

Cod.: 601243
  • Lowest Height mm
  • Scissor lift
  • Lift Time sec.
  • Peso Kg
  • Control Unit
  • Power Pack
  • Power kW (S3)
  • Power Supply
  • Certificate

This combination does not exist.

You have already submitted a query for this product today.
Contact Us
Scarica scheda PDF

Specifications

Capacity Kg 1000
Lift Stroke mm 820
Lowest Height mm 80
Lift Table Lenght mm 1350
Lift Table Width mm 1080
Scissor lift Low Profile
Lift Time sec. 13
Peso Kg 180
Control Unit Standard Control Unit 2 Buttons
Power Pack External with Plastic Cover L=3m
Power kW (S3) 0,95
Power Supply Triphase 400V
Certificate CE - EN 1570-1
