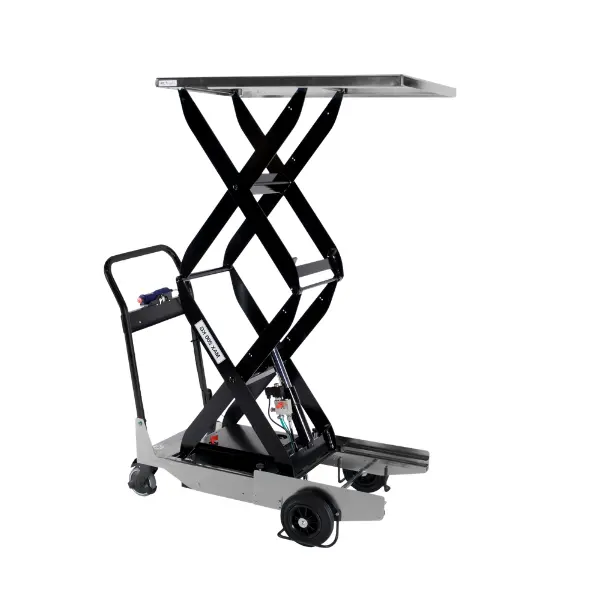

TZD 203B Scissor Lift Trolley

https://odoo.leanproducts.eu/web/image/product.template/1681/image_1920?unique=1739d13

The TZD 203B is a battery-powered scissor lift trolley (12V 24Ah) designed for handling loads up to 200 kg in manufacturing and logistics environments. A 1170 mm lift stroke, 450 mm lowered height, and 900×600 mm work platform provide broad operational flexibility and ergonomically correct load positioning. Compared to the foot-pump variant, the electric drive reduces operator effort during high-frequency lifting cycles. CE certified to EN 1570-1.

Cod.: 22032
  • Lowest Height mm
  • Lift Drive
  • Peso Kg
  • Certificate

This combination does not exist.

You have already submitted a query for this product today.
Contact Us
Scarica scheda PDF

Specifications

Capacity Kg 200
Lift Stroke mm 1170
Lowest Height mm 450
Lift Table Lenght mm 900
Lift Table Width mm 600
Lift Drive Battery 12V 24Ah
Peso Kg 180
Certificate CE - EN 1570-1
