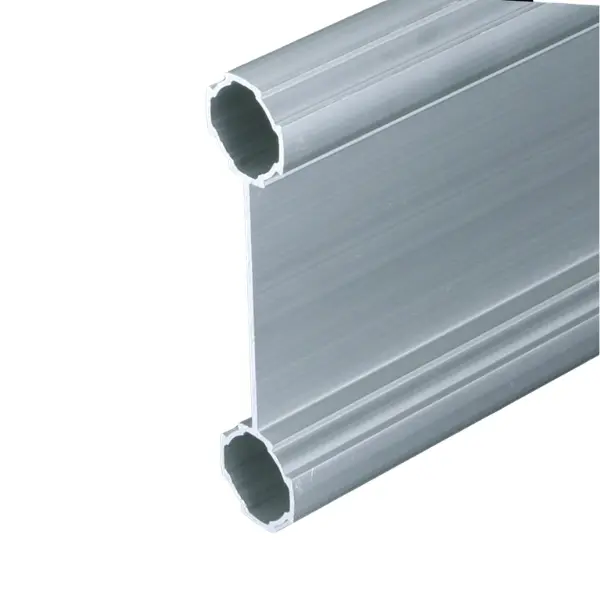

Profilo GF-N Ø28 mm P100 L=4000 mm
The Green Frame P100 structural profile is a high-rigidity component made of extruded aluminum, specifically designed to serve as a load-bearing beam in modular structures based on the 28 mm system. Its reinforced double-tube design ensures exceptional bending strength and superior structural stability, making it the ideal solution for creating long spans in large exhibition stands or industrial facilities. The solid surface and refined finish ensure seamless aesthetic integration with the entire range of accessories, while offering reliable strength for the heaviest loads without compromising the system’s typical ease of assembly.
Caratteristiche
- Massima Robustezza: Profilo pieno ottimizzato per resistere a momenti d'inerzia elevati .
- Integrazione Perfetta: Pienamente compatibile con i connettori e i tappi della serie Green Frame.( GFA-E17, GFA-412, GFA-412Y, GFA-411, GFA-C83, GFA-414, GFA-404)
Dimensioni principali (dal disegno)
- Altezza totale: 128 mm
- Interasse tra i tubi: 100 mm
- Diametro tubi: 28 mm
Dati tecnici
| Momento di inerzia : |
| lx=76,81x104 mm4 |
| ly=2,32x104 mm4 |
| Momento di resistenza: |
| Zx=12,00x103 mm3 |
| Zy=1,65x103 mm3 |
Applicazioni
