Green Frame

The GFJ-B06 is an inner-type free connector for the Green Frame GF-N Ø 28 mm modular system, designed to create adjustable joints with an angle range from 0° to 180°. Its free-angle configuration allows orientation adjustments during assembly of lean structures such as workstations, trolleys, and industrial racking. Weighing 122 g, it integrates seamlessly into the GF-N Ø 28 mm system to provide layout flexibility without altering the tubular components.

The GFJ-B04 articulated internal connector is designed to join Green Frame system tubes with an adjustable angle from 0° to 180°, enabling in-line configurations adaptable to any layout requirement. Made from die-cast aluminium (120 g), it provides structural rigidity while keeping overall assembly weight low. It is suited for building modular lean structures in production environments where geometric flexibility is required.

The Free Connector Outer Type H-F (GFJ-B00) is an articulated outer joint for the Green Frame GF-N Ø 28 mm modular system, designed to connect 28 mm tubes in flexible structural configurations. Made from die-cast aluminium at 110 g, it combines structural rigidity with low added weight. Suitable for assembling workstations, racking, and visual management systems in lean manufacturing environments.

The P15 Parallel Connector (GFJ-A95) is a die-cast aluminium joint designed to connect parallel Ø 28 mm tubes within the modular Green Frame GF-N system. Weighing 28.5 g, it provides a compact and lightweight connection suitable for building industrial workstations, racking structures, and visual management systems. Insertion is performed up to the central red line of the connector, ensuring accurate and repeatable positioning.

The Rotating Connector N (GFJ-A94) is a bearing-based component for the Green Frame GF-N Ø 28 mm modular system, designed for rotary motion applications in lean structures and industrial workstations. It supports a radial load of up to 450 N and a thrust load of up to 750 N, with a static load capacity of 400 N. Weighing 130 g and compatible with board holder GFF-A01, it integrates into the GF-N Moving Parts family for dynamic and adjustable configurations.

The Straight Connector S (GFJ-A89) is a linear connector for the Green Frame GF-S modular system with Ø 19 mm tubes, weighing 44 g. It ensures compatibility with GF-N (Ø 28 mm) and G (Ø 43 mm) systems, making it a versatile joining element for mixed-size structures. Suitable for building lean workstations, trolleys, and flow racks in manufacturing and logistics environments.

The Point Connector 45° S (GFJ-A72) is a die-cast aluminium connector weighing 40 g, designed for the Green Frame GF-S modular system with Ø 19 mm profiles. It enables 45° angled profile joints, expanding structural design options beyond standard orthogonal connections. Suitable for assembling lean workstations, trolleys, and industrial supports where angled geometry is required.

The GFJ-A62 is a wall mounting bracket for hanging Visual Pockets, designed for use with the Green Frame GF-S Ø 19 mm system. Measuring 210 x 25 x 60 mm (W x H x D) and weighing just 3 g, it provides a fixed mounting point for document pockets and offers storage for units not currently in use. Suited for industrial visual management applications requiring structured, point-of-use document display.

The Double Connector S (GFJ-A55) is a parallel connector for the Green Frame GF-S Ø 19 mm modular tube system, designed to join two tubes in a parallel configuration within lean assembly structures. Weighing just 12 g, it integrates seamlessly into workstations, flow racks, and visual management systems built on the GF-S profile. Compatible with the full range of GF-S Ø 19 mm connectors and accessories.

The Reinforced Parallel Connector N (GFJ-A47) is an extruded aluminium joint weighing 64.3 g, designed for the Green Frame GF-N modular system with 28 mm diameter profiles. It ensures compatibility between GF-N (Ø 28 mm) and GF-G (Ø 43 mm) profiles, enabling parallel connections in mixed-diameter structures. Suitable for assembling workstations, racks, and lean manufacturing frameworks where reinforced joints between different profile sizes are required.

The Parallel Connector with Hexagonal Screw N/G (GFJ-A45) is a 27 g extruded aluminium joint designed for the Green Frame modular system. It ensures compatibility between GF-N 28 mm and G 43 mm profiles, enabling parallel connections in mixed-profile structures. Suitable for assembling workstations, racking systems, and visual management solutions in lean manufacturing environments.

The Sliding Parallel Connector N (GFJ-A38) is a sliding joint made from extruded aluminium, designed for the Green Frame GF-N Ø 28 mm tubular system. It enables parallel tube connections with linear sliding capability, making it suitable for building dynamic and adjustable lean structures. At 130 g, it delivers structural rigidity while keeping overall assembly weight low. Classified under Moving Parts, it is intended for workstations, trolleys, and handling systems where mobility and configurability are required.

The Type C Offset Connector N (GFJ-A35) is a joining accessory for the Green Frame GF-N Ø 28 mm modular pipe system, manufactured in extruded aluminium with a total weight of 59 g. Its offset geometry allows angled or staggered connections between structural elements, expanding the configuration options for modular frames. Suitable for lean workstations, material-handling structures, and visual management applications in industrial environments.

The Type B Connector N/G (GFJ-A31) is an anodized aluminum joint accessory (39.4 g) designed to ensure compatibility between Green Frame GF-N Ø 28 mm and GF-G Ø 43 mm profiles. It allows the integration of different-diameter elements within the same tubular structure, increasing design flexibility for lean workstations and manual conveying systems.

The Removable Hook Connector N (GFJ-A30) is an anodized aluminium accessory designed for the Green Frame GF-N Ø 28 mm tubular system, with cross-compatibility for GF-G Ø 43 mm profiles via M5 fixing. It enables tool-free, removable connections between structural elements, supporting rapid reconfiguration of workstations, shelving, or flow rack assemblies. At 23 g, it adds negligible weight to lightweight lean manufacturing structures.

Omega Al (GFJ-A27) is an extruded aluminium accessory designed for the Green Frame GF-N Ø 28 mm tubular system. Weighing just 14 g, it integrates into lean structures for omega-profile joint fixing and management. Suitable for workstations, racking systems, and visual management applications in industrial environments.

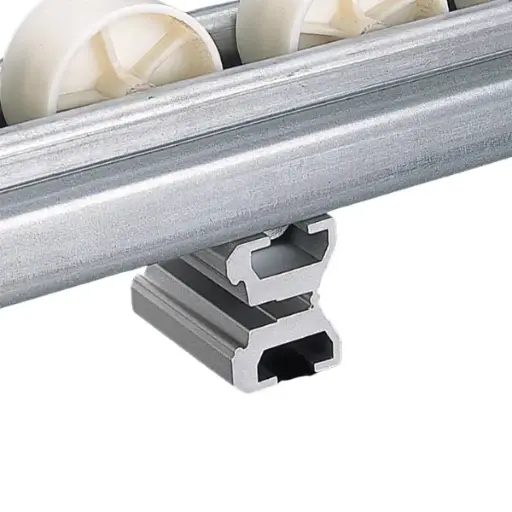

Fixing accessory for roller sections, compatible with the Green Frame GF-N Ø 28 mm system. Used to achieve the desired curve radius in roller conveyors, securing the section without rotation when combined with a C6 T-Nut and GF Nut. Suitable for supermarket storage lanes and rack assemblies in lean manufacturing environments. Weight: 51 g, M6 fixing.

The Type A Panel Fixing Accessory N (GFJ-A22) is a panel mounting accessory designed for use with the Green Frame GF-N system on Ø 28 mm tubes. Made from anodized aluminium, it offers durability at a low weight of 17.4 g, making it suitable for lean workstation setups and visual management installations. The Type A configuration differentiates it from standard polypropylene variants, providing greater mechanical strength for more demanding applications.

The 45° Point Connector N/G (GFJ-A15A) is an angular joint designed for the Green Frame GF-N modular system with Ø 28 mm tubing, also compatible with the GF-G 43 mm system. Weighing 123 g, it provides a 45° structural connection between tubular elements, enhancing rigidity and overall frame stability. Suitable for workstations, racking systems, and visual management structures in lean manufacturing environments.

The GFJ-A13 die-cast aluminium angular connector (193 g) is designed for structural joining of Green Frame series trolleys, enabling angled assembly of profiles. It replaces the discontinued model GFJ-D47 and is installed using M6×20 bolts and M6 countersunk screws. Compatible with same-size trolley stacking configurations.
